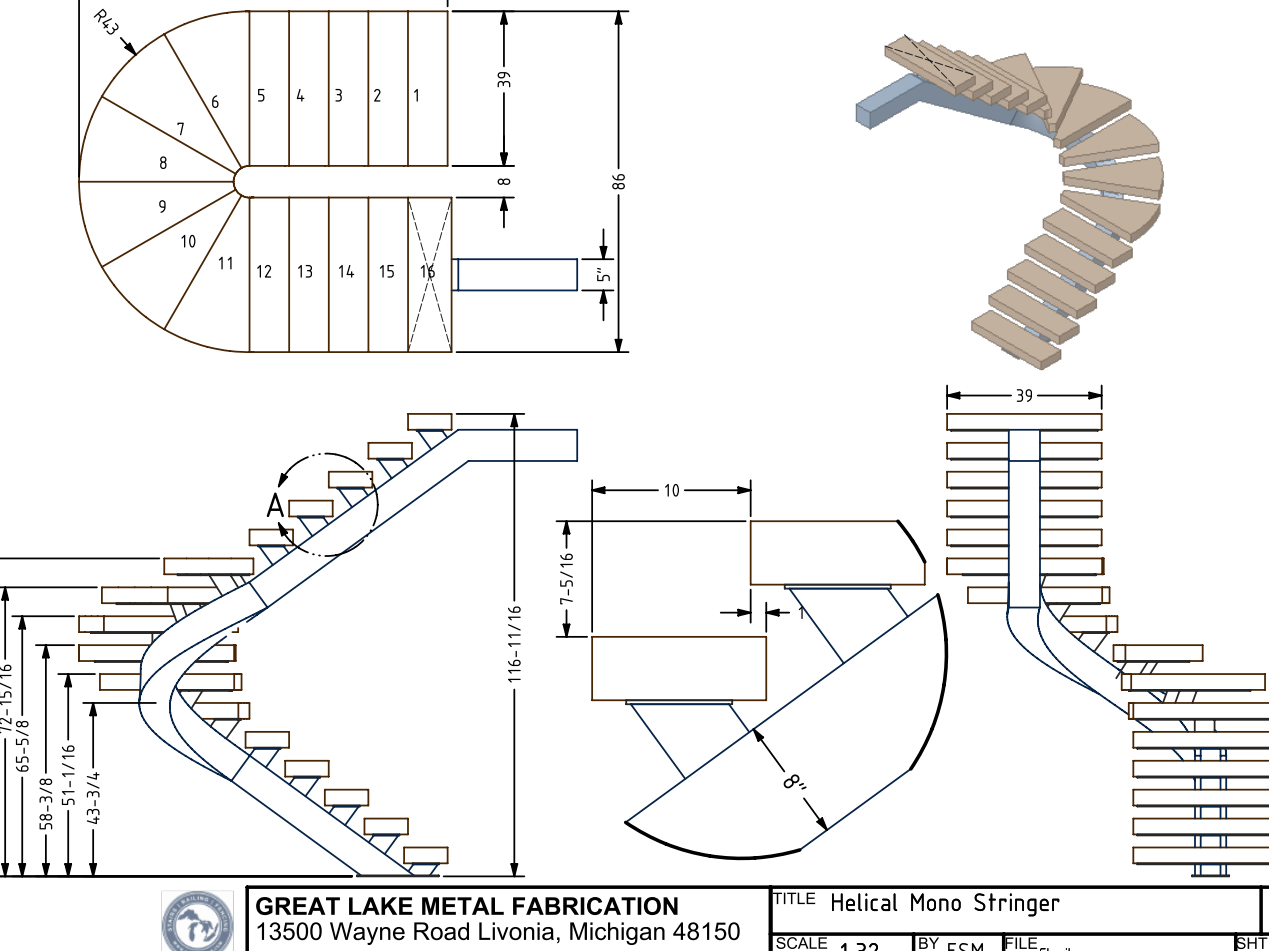

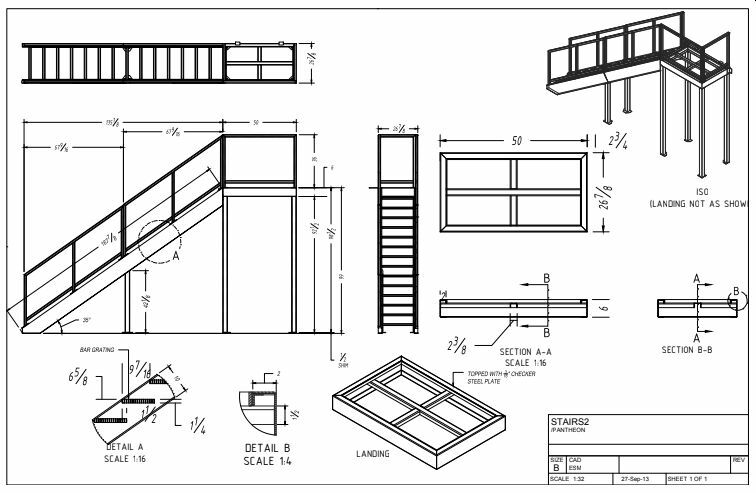

Staircase Shop Drawings
Where can I get good staircase shop CAD drawings?
Staircase builders now require CAD shop drawings for building code compliance.
We've been filling in the gap for staircase fabricators all over North America and UK. Staircases are an architectural centerpiece and we enjoy modeling them. Whether your project requires winder steps, flared or curved steps we can provide 3D shop drawings up to code in your area.
Does your client need to see renderings?

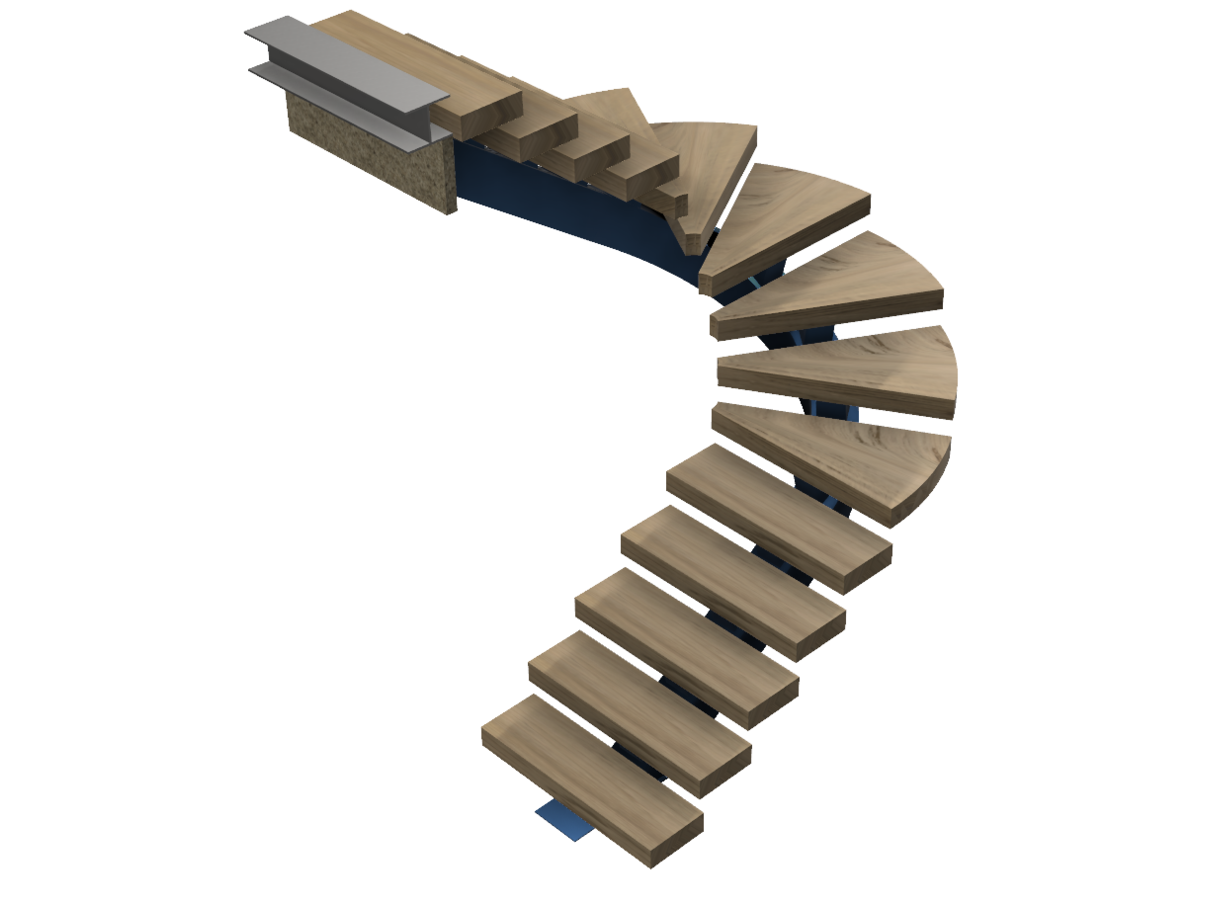

TEKNICAD prepares color 3D renderings to impress your clients and sell your job using SketchUp and Fusion 360. We also prvide catalogue images for stairs manufacturers who also sell parts.
High End Stairs

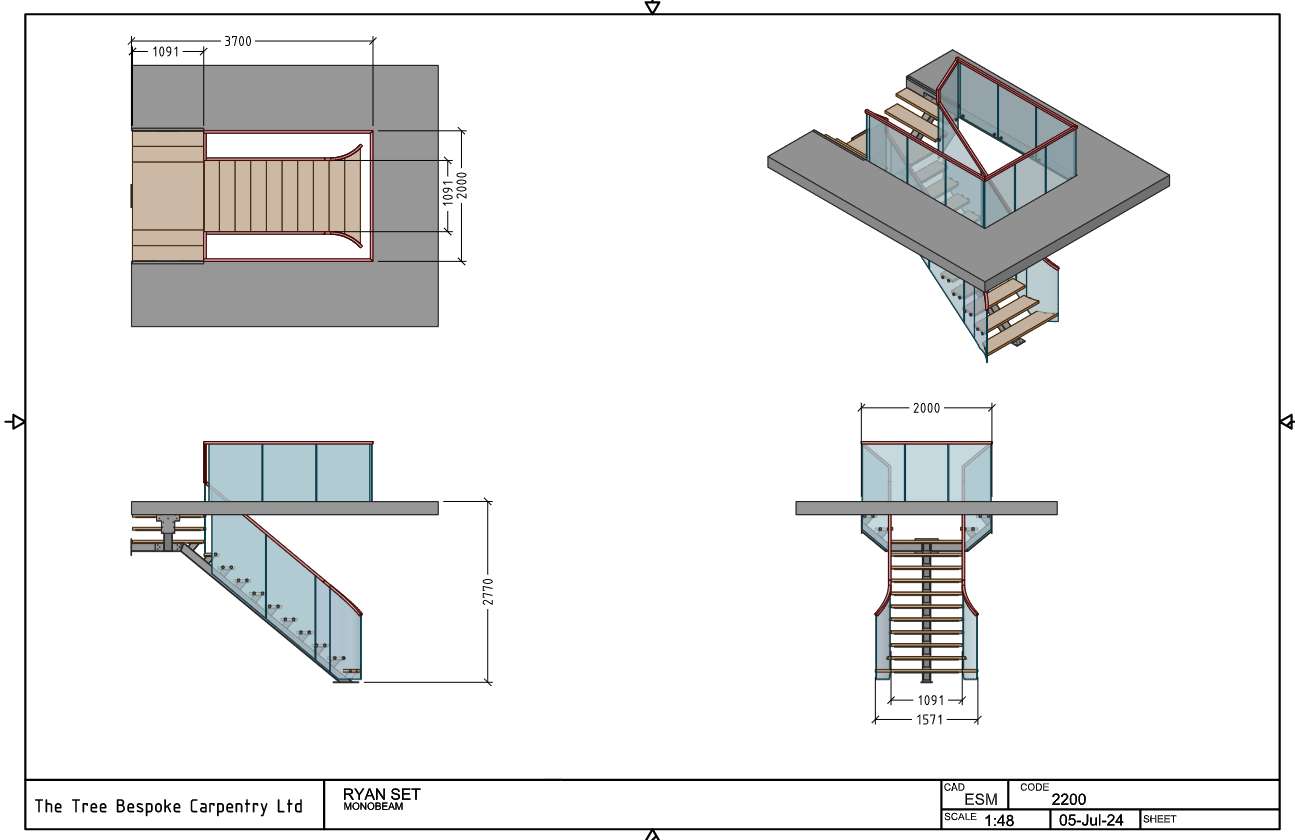

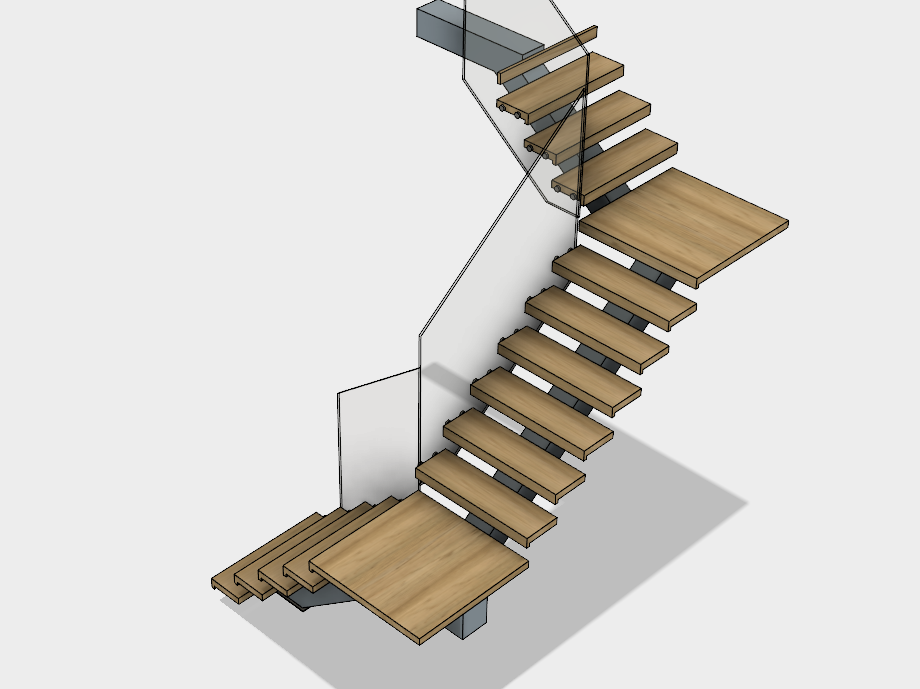

We love floating and monobeam stairs
They are all the rage and we love designing them. We can reverse engineer any can of modern stair.
Digital Staircase Engineering
We work from sketches images and project design drawings. The drawing package is delivered as PDF and machinable files as DXF. Renderings can also be requested.
Shop Drawing Features
- Material and finish list
- Hardware list and specifications
- Architectural and installation notes
Optional:
- DXF to CNC files
- Cutlist
Freelance Stairs Detailing:
Shop Drawings are what we do. We understand building codes and check our own work. We make remote working work by constant communication and progress reports
Our core strengths include:
Experience with a wide variety of architectural fabrication in wood, acrylic and metal.
Using the Best 3D Parametric Software like SolidWorks, Fusion SketchUp, Rhino, and AutoCAD
